2D FM Example
[1]:
%matplotlib inline
import numpy as np
import warnings
warnings.filterwarnings('ignore')
import plotly.graph_objects as go
[1]:
# import sys
# sys.path.append("../../src/")
[2]:
%load_ext autoreload
%autoreload 2
from qeview.qe_analyse_FM import qe_analyse_FM
import qeview.wannier_loader as wnldr
[3]:
Ang2Bohr = 1.8897259886
Bohr2Ang = 1./Ang2Bohr
QE Analysis
[5]:
calc = qe_analyse_FM('./', 'FeCl2')
Unit Cell Volume: 212.9083 (Ang^3)
alat 3.4700
Reciprocal-Space Vectors cart (Ang^-1)
[[ 1.7921067783 1.0346733309 -0. ]
[ 0. 2.0693466617 0. ]
[ 0. -0. 0.3141592427]]
Reciprocal-Space Vectors cart (2 pi / alat)
[[ 0.9897226748 0.5714166527 -0. ]
[ 0. 1.1428333054 0. ]
[ 0. -0. 0.1735 ]]
Real-Space Vectors cart (Ang)
[[ 3.5060328901 0. 0. ]
[-1.753016445 3.0363135493 0. ]
[ 0. 0. 20.0000014396]]
Real-Space Vectors cart (alat)
[[ 1.0103840454 0. 0. ]
[-0.5051920227 0.8750182509 0. ]
[ 0. 0. 5.7636887608]]
positions cart (alat)
['Fe', 'Cl', 'Cl']
[[ 0. 0. 2.8818443804]
[-0. 0.5833454423 2.475577279 ]
[ 0.5051920732 0.2916727211 3.2881114818]]
positions (frac or crystal)
[[0. 0. 0.5 ]
[0.3333333 0.6666666 0.4295126579]
[0.6666667 0.3333333 0.5704873421]]
positions (AA)
[[ 0. 0. 10.0000007198]
[-0. 2.0242088304 8.5902537766]
[ 1.7530166203 1.0121044152 11.4097476631]]
[6]:
calc.get_band_structure()
calc.get_sym_points(filename='band.in')
[7]:
_,_ = calc.get_qe_kpathBS(filename="kpath_qe2.dat", saveQ=True, points_per_unit=20)
G 0.00000000 0.00000000 0.00000000 0.00000000
. 0.00000000 0.04545455 0.00000000 0.05194697
. 0.00000000 0.09090909 0.00000000 0.10389394
. 0.00000000 0.13636364 0.00000000 0.15584091
. 0.00000000 0.18181818 0.00000000 0.20778787
. 0.00000000 0.22727273 0.00000000 0.25973484
. 0.00000000 0.27272727 0.00000000 0.31168181
. 0.00000000 0.31818182 0.00000000 0.36362878
. 0.00000000 0.36363636 0.00000000 0.41557575
. 0.00000000 0.40909091 0.00000000 0.46752272
. 0.00000000 0.45454545 0.00000000 0.51946968
M 0.00000000 0.50000000 0.00000000 0.57141665
. -0.05555556 0.52777778 0.00000000 0.62640125
. -0.11111111 0.55555556 0.00000000 0.68138584
. -0.16666667 0.58333333 0.00000000 0.73637043
. -0.22222222 0.61111111 0.00000000 0.79135502
. -0.27777778 0.63888889 0.00000000 0.84633962
K -0.33333333 0.66666667 0.00000000 0.90132421
. -0.30769231 0.61538462 0.00000000 0.95207922
. -0.28205128 0.56410256 0.00000000 1.00283423
. -0.25641026 0.51282051 0.00000000 1.05358924
. -0.23076923 0.46153846 0.00000000 1.10434425
. -0.20512821 0.41025641 0.00000000 1.15509926
. -0.17948718 0.35897436 0.00000000 1.20585426
. -0.15384615 0.30769231 0.00000000 1.25660927
. -0.12820513 0.25641026 0.00000000 1.30736428
. -0.10256410 0.20512821 0.00000000 1.35811929
. -0.07692308 0.15384615 0.00000000 1.40887430
. -0.05128205 0.10256410 0.00000000 1.45962931
. -0.02564103 0.05128205 0.00000000 1.51038432
G 0.00000000 0.00000000 0.00000000 1.56113933
[8]:

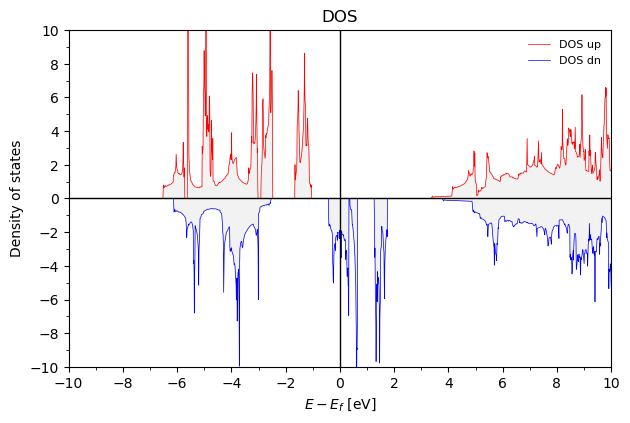

calc.plot_FullDOS(efrom=-10, eto=10)
Energies and DOS were not initialized. I run get_full_DOS
efermi -1.97
[9]:

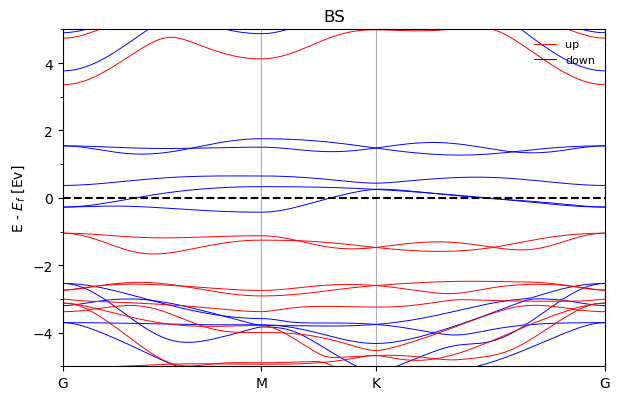

calc.plot_BS(efrom=-5, eto=5)
[10]:
calc.print_bands_range(7, 20)
efermi -1.97
-------------SPIN UP---------------
band 8 eV from -7.59 to -7.01 eV-eF from -5.62 to -5.05
band 9 eV from -7.55 to -6.85 eV-eF from -5.58 to -4.89
band 10 eV from -6.90 to -5.30 eV-eF from -4.94 to -3.34
band 11 eV from -6.74 to -5.09 eV-eF from -4.78 to -3.13
band 12 eV from -6.50 to -5.09 eV-eF from -4.53 to -3.13
band 13 eV from -5.35 to -4.98 eV-eF from -3.38 to -3.01
band 14 eV from -4.88 to -4.53 eV-eF from -2.91 to -2.56
band 15 eV from -4.72 to -4.44 eV-eF from -2.75 to -2.48
band 16 eV from -3.64 to -3.02 eV-eF from -1.67 to -1.05
band 17 eV from -3.44 to -3.02 eV-eF from -1.47 to -1.05
band 18 eV from 1.39 to 3.09 eV-eF from 3.36 to 5.06
band 19 eV from 2.77 to 4.91 eV-eF from 4.74 to 6.87
band 20 eV from 3.11 to 5.40 eV-eF from 5.08 to 7.37
-------------SPIN DN---------------
band 8 eV from -7.37 to -5.67 eV-eF from -5.41 to -3.70
band 9 eV from -7.13 to -5.67 eV-eF from -5.16 to -3.70
band 10 eV from -6.29 to -5.01 eV-eF from -4.32 to -3.05
band 11 eV from -5.96 to -4.51 eV-eF from -3.99 to -2.54
band 12 eV from -5.72 to -4.51 eV-eF from -3.76 to -2.54
band 13 eV from -2.39 to -1.72 eV-eF from -0.43 to 0.25
band 14 eV from -2.24 to -1.64 eV-eF from -0.27 to 0.33
band 15 eV from -1.60 to -1.32 eV-eF from 0.37 to 0.65
band 16 eV from -0.70 to -0.43 eV-eF from 1.27 to 1.54
band 17 eV from -0.60 to -0.21 eV-eF from 1.37 to 1.75
band 18 eV from 1.80 to 3.90 eV-eF from 3.77 to 5.87
band 19 eV from 2.93 to 5.27 eV-eF from 4.90 to 7.24
band 20 eV from 3.18 to 5.90 eV-eF from 5.15 to 7.87
[26]:
calc.get_pDOS()
FeCl2.pdos_atm#2(Cl)_wfc#2(p)
FeCl2.pdos_atm#2(Cl)_wfc#1(s)
FeCl2.pdos_atm#1(Fe)_wfc#1(s)
FeCl2.pdos_atm#3(Cl)_wfc#2(p)
FeCl2.pdos_atm#1(Fe)_wfc#4(d)
FeCl2.pdos_atm#1(Fe)_wfc#3(p)
FeCl2.pdos_atm#3(Cl)_wfc#1(s)
FeCl2.pdos_atm#1(Fe)_wfc#2(s)
[12]:

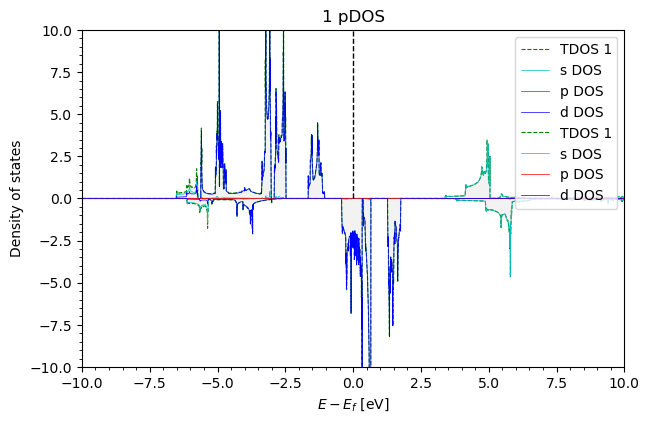

calc.plot_pDOS('1', efrom=-10, eto=10, yfrom=-10)
[13]:

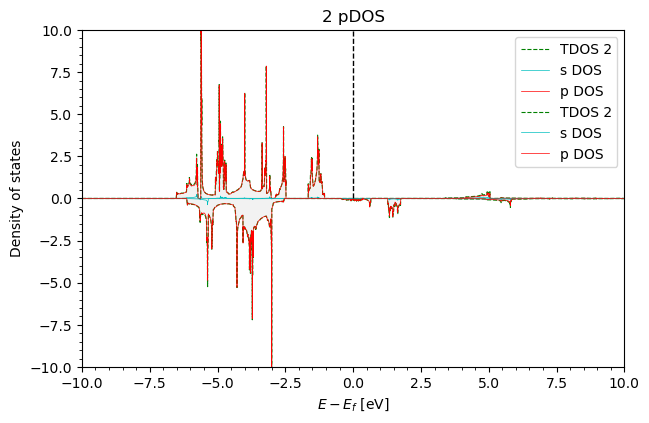

calc.plot_pDOS('2', efrom=-10, eto=10, yfrom=-10)
Wannier bands
[20]:
calc.load_wannier(kpath_filename='kpath_qe2.dat', kpaths_dir='kpaths',
hr_up_name='hrup.dat', hr_dn_name='hrdn.dat')
nwa 9
Rpts 343
we have 2D hamiltonian
nwa 9
Rpts 343
we have 2D hamiltonian
100%|██████████| 31/31 [00:00<00:00, 481.53it/s]
100%|██████████| 31/31 [00:00<00:00, 494.94it/s]
[21]:

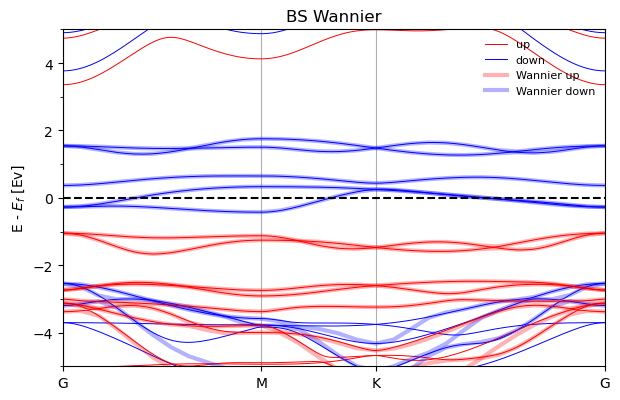

#interpolate the bands, on the plot bolds are interpolated wannier bands
calc.plot_wannier_BS(efrom=-5, eto=5)
[24]:
#now we want to plot the wannier bands on several BZ (normally you don't need to do this)
loader = wnldr.Wannier_loader_FM(hr_up_name='hrup.dat', hr_dn_name='hrdn.dat', wannier_dir='wannier')
acell = np.linalg.norm(calc.acell[0]) # AA
b1 = calc.bcell[0][:2] / (2. * np.pi / acell) # First reciprocal lattice vector in units of 2pi/a
b2 = calc.bcell[1][:2] / (2. * np.pi / acell) # Second reciprocal lattice vector in units of 2pi/a
nwa 9
Rpts 343
we have 2D hamiltonian
nwa 9
Rpts 343
we have 2D hamiltonian
[25]:
klim = 1.0 # want to have data in range [-1, 1] (in units of 2pi/a)
nkpt = 20
bs, _ = loader.get_dense_hk_symmetric(nkpt=nkpt, krange=klim, find_eigsQ=True)
100%|██████████| 1600/1600 [00:03<00:00, 472.06it/s]
100%|██████████| 1600/1600 [00:03<00:00, 481.70it/s]
[82]:
band_str_up = bs[:,:,0] # choose spin up
band_str_dn = bs[:,:,1]
[83]:
# k fractional
kpoints_adj_serial = np.mgrid[-klim:klim:1.0/nkpt, -klim:klim:1.0/nkpt].reshape(2,-1).T
x = kpoints_adj_serial[:, 0]
y = kpoints_adj_serial[:, 1]
# k cartisian (2 pi / alat)
coords = [ x[i] * b1 + y[i]* b2 for i in range(len(x))] # repr cart in 2 pi / alat
coords = np.array(coords)
kx = coords[:, 0]
ky = coords[:, 1]
[84]:
z = np.real(band_str_dn[ 5, :] - calc.efermi) # 7th band for example
fig = go.Figure()
fig.add_trace(go.Contour(x=kx,y=ky,z=z,line_smoothing=1.3))
# fermi level
contour_trace = go.Contour(
z=z,
x=kx,
y=ky,
contours=dict(
start=0,
end=0,
size=0.1,
coloring='lines'
),
showscale=False,
line=dict(width=2)
)
fig.add_trace(contour_trace)
# Hexagonal Brillouin Zone vertices
BZ_vertices = np.array([
0.666 * b1 - 0.333 * b2,
0.333 * b1 + 0.333 * b2,
-0.333 * b1 + 0.666 * b2,
-0.666 * b1 + 0.333 * b2,
-0.333 * b1 - 0.333 * b2,
0.333 * b1 - 0.666 * b2,
0.666 * b1 - 0.333 * b2])
# High-symmetry points in units of (2π/a)
Gamma = np.array([0, 0])
M = 0.5 * b2
K = -0.3333333333 * b1 + 0.6666666667 * b2
# Add arrows for b1 and b2
fig.add_annotation(
x=b1[0], y=b1[1],
ax=0, ay=0,
xref="x", yref="y",
axref="x", ayref="y",
showarrow=True,
arrowhead=3,
arrowsize=2,
arrowwidth=2,
arrowcolor="green",
text="b1",
font=dict(size=12, color="green"),
yshift=0
)
fig.add_annotation(
x=b2[0], y=b2[1],
ax=0, ay=0,
xref="x", yref="y",
axref="x", ayref="y",
showarrow=True,
arrowhead=3,
arrowsize=2,
arrowwidth=2,
arrowcolor="purple",
text="b2",
font=dict(size=12, color="purple"),
yshift=0
)
# Path: Γ → M → K → Γ
path = np.array([Gamma, M, K, Gamma])
# Plot high-symmetry points
high_symmetry_labels = ['Γ', 'M', 'K']
high_symmetry_points = [Gamma, M, K]
for point, label in zip(high_symmetry_points, high_symmetry_labels):
fig.add_trace(go.Scatter(
x=[point[0]],
y=[point[1]],
mode='markers+text',
text=[label],
textposition="top center",
marker=dict(color='red', size=10),
name=label,
showlegend=False
))
# Plot path
fig.add_trace(go.Scatter(
x=path[:, 0],
y=path[:, 1],
mode='lines+markers',
line=dict(color='red', width=2, dash='dash'),
marker=dict(color='red', size=6),
name='Path: Γ → M → K → Γ',
showlegend=False
))
# Plot BZ
fig.add_trace(go.Scatter(
x=BZ_vertices[:, 0],
y=BZ_vertices[:, 1],
mode='lines',
line=dict(color='black', width=2),
showlegend=False
))
fig.update_layout(
autosize=False,
width=800, # Width of the figure
height=800, # Height of the figure
xaxis=dict(
scaleanchor="y", # Match the scale of the x-axis with the y-axis
title="kx cart in 2 pi / alat",
range=[-1, 1]
),
yaxis=dict(title="ky cart in 2 pi / alat", range=[-1, 1]),
title="band str a.u. in FeCl2"
)
fig.show()
Data type cannot be displayed: application/vnd.plotly.v1+json
[ ]:
[ ]:
