2D PM Example
[1]:
%matplotlib inline
import numpy as np
import warnings
warnings.filterwarnings('ignore')
import plotly.graph_objects as go
[1]:
# import sys
# sys.path.append("../../src/")
[3]:
%load_ext autoreload
%autoreload 2
from qeview.qe_analyse_PM import qe_analyse_PM
import qeview.wannier_loader as wnldr
[4]:
Ang2Bohr = 1.8897259886
Bohr2Ang = 1./Ang2Bohr
QE Analysis
[5]:
calc = qe_analyse_PM('./', 'FeCl2')
Unit Cell Volume: 199.0057 (Ang^3)
alat 3.4700
Reciprocal-Space Vectors cart (Ang^-1)
[[ 1.8536487674 1.0702046148 -0. ]
[ 0. 2.1404092296 0. ]
[ 0. -0. 0.3141592427]]
Reciprocal-Space Vectors cart (2 pi / alat)
[[ 1.0237103271 0.5910394329 -0. ]
[ 0. 1.1820788658 0. ]
[ 0. -0. 0.1735 ]]
Real-Space Vectors cart (Ang)
[[ 3.3896309904 0. 0. ]
[-1.6948154952 2.9355065471 0. ]
[ 0. 0. 20.0000014396]]
Real-Space Vectors cart (alat)
[[ 0.9768388318 0. 0. ]
[-0.4884194159 0.8459672438 0. ]
[ 0. 0. 5.7636887608]]
positions cart (alat)
['Fe', 'Cl', 'Cl']
[[0. 0. 2.8818443804]
[0. 0.5639781061 2.529543436 ]
[0.4884194648 0.2819890531 3.2341453248]]
positions (frac or crystal)
[[0. 0. 0.5 ]
[0.3333333 0.6666666 0.4388757861]
[0.6666667 0.3333333 0.5611242139]]
positions (AA)
[[ 0. 0. 10.0000007198]
[ 0. 1.9570041691 8.7775163546]
[ 1.6948156647 0.9785020845 11.222485085 ]]
[7]:
calc.get_band_structure(bands_filename='bands.dat.gnu', qe_dir='qe')
calc.get_sym_points(filename='band.in', qe_dir='qe')
[8]:
_,_ = calc.get_qe_kpathBS(filename="kpath_qe2.dat", saveQ=True, points_per_unit=10)
G 0.00000000 0.00000000 0.00000000 0.00000000
. 0.00000000 0.10000000 0.00000000 0.11820789
. 0.00000000 0.20000000 0.00000000 0.23641577
. 0.00000000 0.30000000 0.00000000 0.35462366
. 0.00000000 0.40000000 0.00000000 0.47283155
M 0.00000000 0.50000000 0.00000000 0.59103943
. -0.11111111 0.55555556 0.00000000 0.70478502
. -0.22222222 0.61111111 0.00000000 0.81853062
K -0.33333333 0.66666667 0.00000000 0.93227621
. -0.27777778 0.55555556 0.00000000 1.04602180
. -0.22222222 0.44444444 0.00000000 1.15976739
. -0.16666667 0.33333333 0.00000000 1.27351298
. -0.11111111 0.22222222 0.00000000 1.38725858
. -0.05555556 0.11111111 0.00000000 1.50100417
G 0.00000000 0.00000000 0.00000000 1.61474976
[9]:

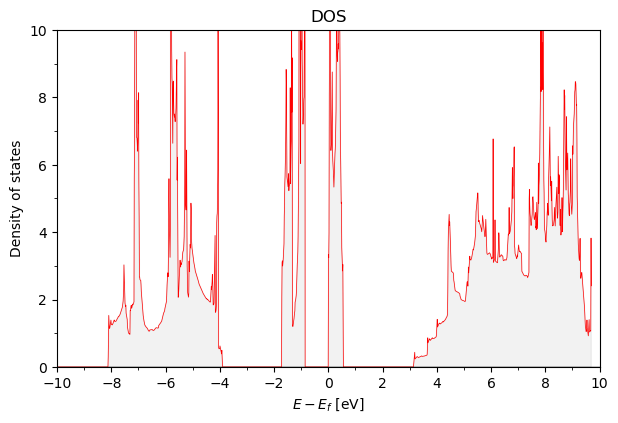

calc.plot_FullDOS(efrom=-10, eto=10)
Energies and DOS were not initialized. I run get_full_DOS
efermi -0.51
[10]:

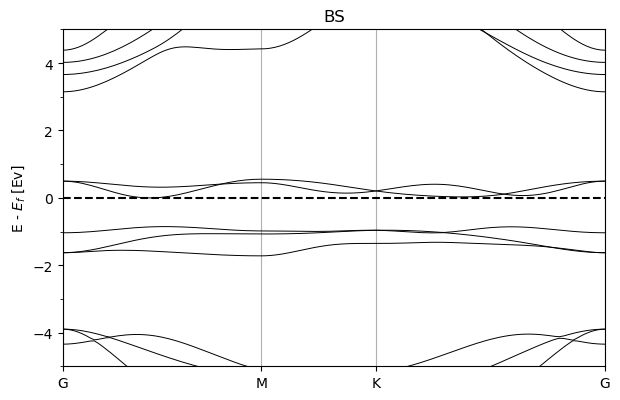

calc.plot_BS(efrom=-5, eto=5)
[11]:
calc.print_bands_range(7, 20)
efermi -0.51
-------------BANDS---------------
band 8 eV from -7.66 to -6.33 eV-eF from -7.16 to -5.82
band 9 eV from -7.59 to -6.05 eV-eF from -7.08 to -5.55
band 10 eV from -6.33 to -4.75 eV-eF from -5.82 to -4.24
band 11 eV from -6.06 to -4.40 eV-eF from -5.55 to -3.90
band 12 eV from -5.69 to -4.40 eV-eF from -5.18 to -3.90
band 13 eV from -2.23 to -1.82 eV-eF from -1.72 to -1.32
band 14 eV from -2.14 to -1.47 eV-eF from -1.63 to -0.96
band 15 eV from -1.54 to -1.36 eV-eF from -1.04 to -0.85
band 16 eV from -0.51 to -0.01 eV-eF from -0.00 to 0.50
band 17 eV from -0.39 to 0.05 eV-eF from 0.11 to 0.55
band 18 eV from 2.64 to 5.34 eV-eF from 3.15 to 5.85
band 19 eV from 3.15 to 6.54 eV-eF from 3.66 to 7.04
band 20 eV from 3.52 to 6.83 eV-eF from 4.02 to 7.34
[14]:
calc.get_pDOS()
FeCl2.pdos_atm#2(Cl)_wfc#2(p)
FeCl2.pdos_atm#2(Cl)_wfc#1(s)
FeCl2.pdos_atm#1(Fe)_wfc#1(s)
FeCl2.pdos_atm#3(Cl)_wfc#2(p)
FeCl2.pdos_atm#1(Fe)_wfc#4(d)
FeCl2.pdos_atm#1(Fe)_wfc#3(p)
FeCl2.pdos_atm#3(Cl)_wfc#1(s)
FeCl2.pdos_atm#1(Fe)_wfc#2(s)
[15]:

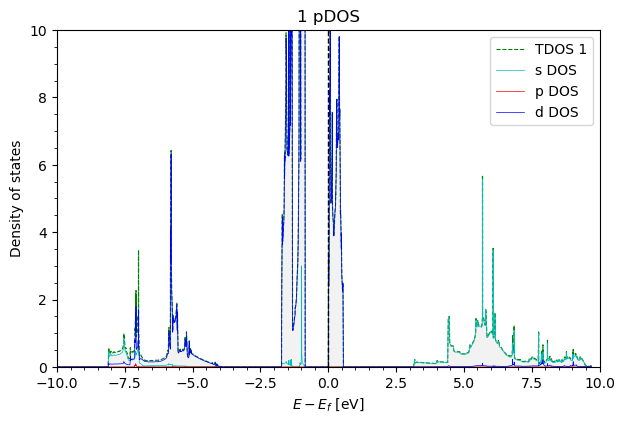

calc.plot_pDOS('1', efrom=-10, eto=10)
[16]:

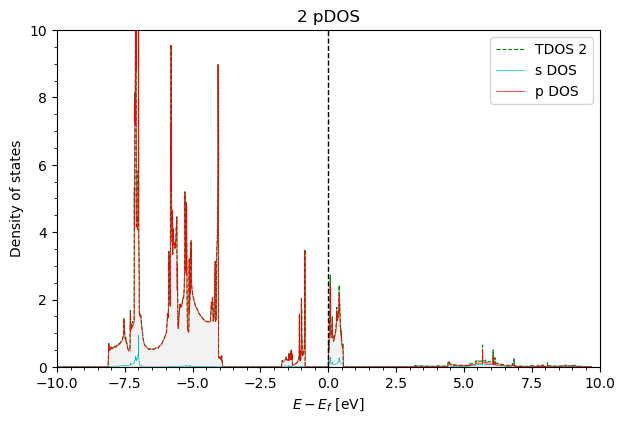

calc.plot_pDOS('2', efrom=-10, eto=10 )
Wannier bands
[25]:
calc.load_wannier(kpath_filename='kpath_qe2.dat', wannier_hr_name='FeCl2_hr.dat')
nwa 5
Rpts 601
we have 2D hamiltonian
100%|██████████| 15/15 [00:00<00:00, 296.40it/s]
[28]:

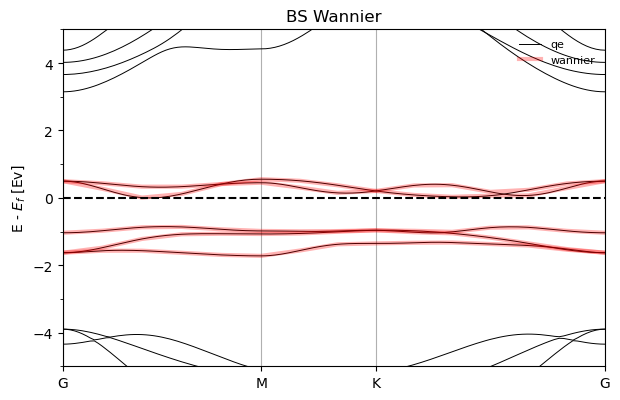

#interpolate the bands, on the plot bolds are interpolated wannier bands
calc.plot_wannier_BS(efrom=-5, eto=5)
[29]:
#now we want to plot the wannier bands on several BZ (normally you don't need to do this)
loader = wnldr.Wannier_loader_PM('FeCl2_hr.dat', wannier_dir='wannier')
acell = np.linalg.norm(calc.acell[0]) # AA
b1 = calc.bcell[0][:2] / (2. * np.pi / acell) # First reciprocal lattice vector in units of 2pi/a
b2 = calc.bcell[1][:2] / (2. * np.pi / acell) # Second reciprocal lattice vector in units of 2pi/a
nwa 5
Rpts 601
we have 2D hamiltonian
[30]:
klim = 1.0 # want to have data in range [-1, 1] (in units of 2pi/a)
nkpt = 20
bs, _ = loader.get_dense_hk_symmetric(nkpt=nkpt, krange=klim, find_eigsQ=True)
100%|██████████| 1600/1600 [00:05<00:00, 311.40it/s]
[31]:
band_str = bs[:,:,0]
[95]:
# k crystal
kpoints_adj_serial = np.mgrid[-klim:klim:1.0/nkpt, -klim:klim:1.0/nkpt].reshape(2,-1).T
x = kpoints_adj_serial[:, 0]
y = kpoints_adj_serial[:, 1]
# k cart (2 pi / alat)
coords = [ x[i] * b1 + y[i]* b2 for i in range(len(x))] # repr cart in 2 pi / alat
coords = np.array(coords)
kx = coords[:, 0]
ky = coords[:, 1]
[98]:
z = np.real(band_str[ 3, :] - calc.efermi) # 3rd band
fig = go.Figure()
fig.add_trace(go.Contour(x=kx,y=ky,z=z,line_smoothing=1.3))
contour_trace = go.Contour(
z=z,
x=kx,
y=ky,
contours=dict(
start=0,
end=0,
size=0.1,
coloring='lines'
),
showscale=False,
line=dict(width=2)
)
fig.add_trace(contour_trace)
# Create the figure
# Hexagonal Brillouin Zone vertices
BZ_vertices = np.array([
0.666 * b1 - 0.333 * b2,
0.333 * b1 + 0.333 * b2,
-0.333 * b1 + 0.666 * b2,
-0.666 * b1 + 0.333 * b2,
-0.333 * b1 - 0.333 * b2,
0.333 * b1 - 0.666 * b2,
0.666 * b1 - 0.333 * b2])
# High-symmetry points in units of (2π/a)
Gamma = np.array([0, 0])
M = 0.5 * b2
K = -0.3333333333 * b1 + 0.6666666667 * b2
# Add arrows for b1 and b2
fig.add_annotation(
x=b1[0], y=b1[1],
ax=0, ay=0,
xref="x", yref="y",
axref="x", ayref="y",
showarrow=True,
arrowhead=3,
arrowsize=2,
arrowwidth=2,
arrowcolor="green",
text="b1",
font=dict(size=12, color="green"),
yshift=0
)
fig.add_annotation(
x=b2[0], y=b2[1],
ax=0, ay=0,
xref="x", yref="y",
axref="x", ayref="y",
showarrow=True,
arrowhead=3,
arrowsize=2,
arrowwidth=2,
arrowcolor="purple",
text="b2",
font=dict(size=12, color="purple"),
yshift=0
)
# Path: Γ → M → K → Γ
path = np.array([Gamma, M, K, Gamma])
# Plot high-symmetry points
high_symmetry_labels = ['Γ', 'M', 'K']
high_symmetry_points = [Gamma, M, K]
for point, label in zip(high_symmetry_points, high_symmetry_labels):
fig.add_trace(go.Scatter(
x=[point[0]],
y=[point[1]],
mode='markers+text',
text=[label],
textposition="top center",
marker=dict(color='red', size=10),
name=label,
showlegend=False
))
# Plot path
fig.add_trace(go.Scatter(
x=path[:, 0],
y=path[:, 1],
mode='lines+markers',
line=dict(color='red', width=2, dash='dash'),
marker=dict(color='red', size=6),
name='Path: Γ → M → K → Γ',
showlegend=False
))
# Plot BZ
fig.add_trace(go.Scatter(
x=BZ_vertices[:, 0],
y=BZ_vertices[:, 1],
mode='lines',
line=dict(color='black', width=2),
showlegend=False
))
fig.update_layout(
autosize=False,
width=800, # Width of the figure
height=800, # Height of the figure
xaxis=dict(
scaleanchor="y", # Match the scale of the x-axis with the y-axis
title="kx cart in 2 pi / alat",
range=[-1, 1]
),
yaxis=dict(title="ky cart in 2 pi / alat", range=[-1, 1]),
title="band str a.u. in FeCL2"
)
fig.show()
Data type cannot be displayed: application/vnd.plotly.v1+json
[ ]:
[ ]:
